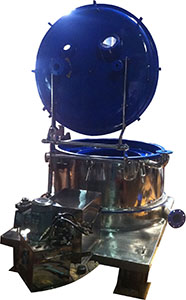

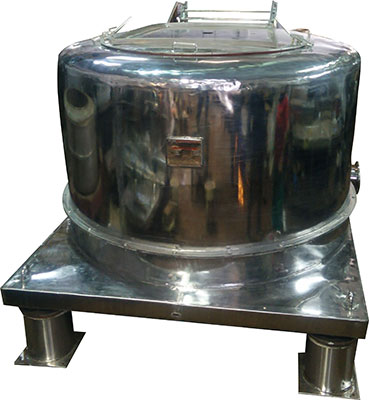

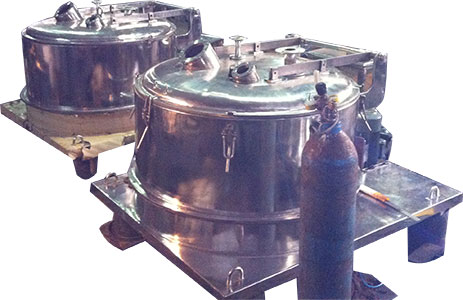

DMW Centrifuges are the heavy duty Centrifuge with robust construction, provide rapid acceleration and smooth running. We at ‘DMW’ have experienced and qualified team of Engineers, which continuously make changes according to the latest technology, and customer needs to ensure customers satisfaction. Our machines consume less starting and running current and have powerful efficient braking.
BASKET
The perforated basket is made of Stainless Steel (AISI 304/316) in standard sizes and in different gauges according to the size of the machine. The basket is dynamically balanced for vibration free running. The outer cage sidewalls are also made of stainless steel AISI 304/316.
BEARING HOUSING & SHAFT
Bearing Housing is of CI and main shaft is of Alloy Steel and is precisely machined to withstand the loads caused by the centrifugal force. The 3 nos. bearings supporting the main shaft are heavy duty roller and thrust bearings.
DRIVE SYSTEM
The revolving cage is driven by vertical T.E.F.C. Motor fitted with Fluid Coupling for progressive starting of the machine.
SUSPENSION
The complete machine is suspended by heavy duty three legs on universal oscillating steel pins with heavy steel springs and spherical bearings.
OPTIONAL FEATURES
AC Variable Frequency Drive with Dynamic Braking and Programmable Logic Controller (PLC) for complete automation.
High Speed Models available in 18” and 24” Basket dia.
Gas Tight Construction
Advantages of 4 Point Mounting
No need for elaborate foundation / civil work
Can be easily relocated.
Almost negligible maintenance cost for suspension / mounting system
Level of vibration much lower.
Can be easily mounted on upper floors.

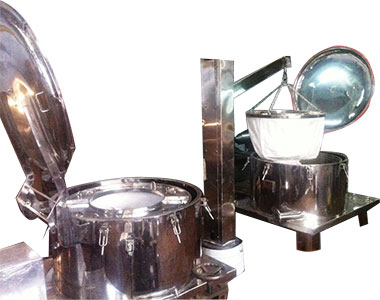

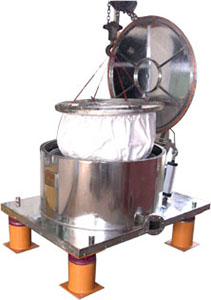

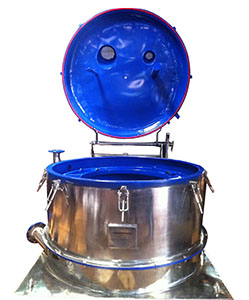

DMW Centrifuges are the heavy duty Centrifuge with robust construction; provide rapid acceleration and smooth running. These are the instant Top Discharge Centrifuge in which the filter bag is fitted in the basket having easy detachable top ring. The filter bag along with the basket top is lifted by the monorail hoist or chain pulley and moved to the desired place. The cake is discharged through the center of the bag.
Main Features:
Easy & quick loading/unloading.
Less manual labour involved.
High production per batch
Scrapping of cake not required.
Uniform distribution of slurry.
No manual contact with cake.
Fast & Easy opening of the Top Lid by Hydraulic / Pneumatic.
Cake handling loss negligible and no rest cake heel left behind.
Most suitable for hard Cake.
Uniform washing of slurry / Cake
Maximum use of Basket Capacity.
Advantages of 4 Point Mounting
No need for elaborate foundation / civil work
Can be easily relocated.
Almost negligible maintenance cost for suspension / mounting system
Level of vibration much lower.
Can be easily mounted on upper floors.

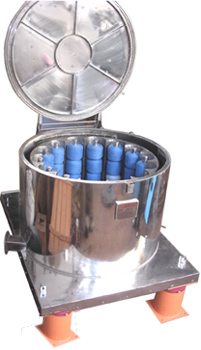

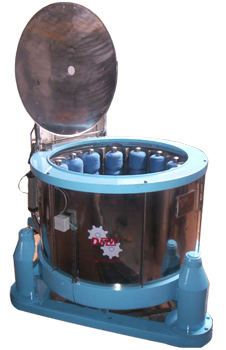

DMW Hydro Extractors are the heavy duty Centrifuge with robust construction, provide rapid acceleration and smooth running.
MAIN BASKET:

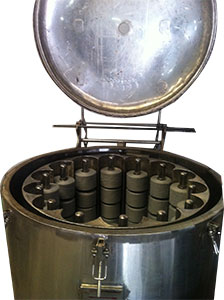

The Main Basket is specially designed to accommodate Cheese / Cone Packages to avoid damage to the yarn. The spindles are made of seamless SS 304 pipe.
OUTER BODY:
Totally made of SS 304 in 12 / 14 Gauge according to size of the machine
TOP LID:
Fully opened SS 304 with Pneumatic Cylinder.
DRIVE SYSTEM:
Verticle mounted TEFC AC Electric Motor with Fluid Coupling / AC Inverter Drive for progressive starting of the machine.
CONTROL PANEL:
Complete Digital Panel Control Box with safety interlocks.
MOISTURE CONTENTS:
Between 0% - 55% on Bone Dry weight required for R/F Dryer.
DRYING CYCLE:
12 to 20 Minutes which vary according to the count and nature of the yarn.

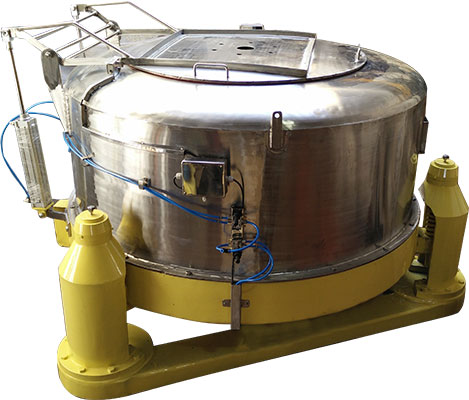

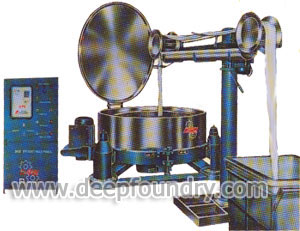

DMW introduces their latest ‘MASTER CENTRIFUGE’ with state of the art technology and advanced features for the utmost convenience of the Textile Processing House. This Machine with AC Inverter Drive and Fabric Loading / Un loading Device has innumerable advantages over the traditional Centrifuges.
Main Features:
Very smooth & noiseless starting of the machine due to the progressive acceleration provided by the Ac Inverter Drive. Hence no need for Centrifugal Clutch Pulley, no wear and tear, and no maintenance.
Power Saving upto 35% due to low starting and running current.
Speed of the basket can be varied even during running mode. Hence suitable for different fabric qualities.
Auto off after the completion of Hydro-Extraction time, followed by the Auto-Dynamic braking of the revolving basket.
Audio / Visual alarm to alert the operator, indicating the completion of the process.
Panel Control is provided with Safety Interlocks.
Easy & Smooth opening of Top Lid by Hydraulic Power Pack. Spherical bearing used in suspension columns gives trouble free running.
Technical Specifications for Micro Processor Controlled Hydro Extractor with Fabric Loading & Unloading Device:

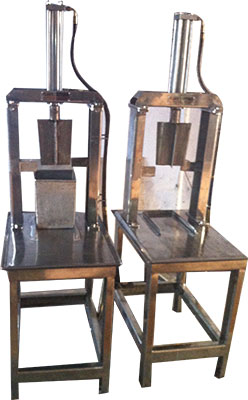

We make use of advanced production techniques and hi-tech equipment that are installed at our well-developed manufacturing unit. We manufacture Compression Molding Press, C type Press, H Frame Press, Fitting Press, Lab Testing Press etc. We also manufacture the hydraulic press machine as per customer specific requirements. Our hydraulic pressed are working successfully in many industries. We have exported our machines to Bangladesh, Sri Lanka, Nepal, Middle East and Africa.
Cotton Waste

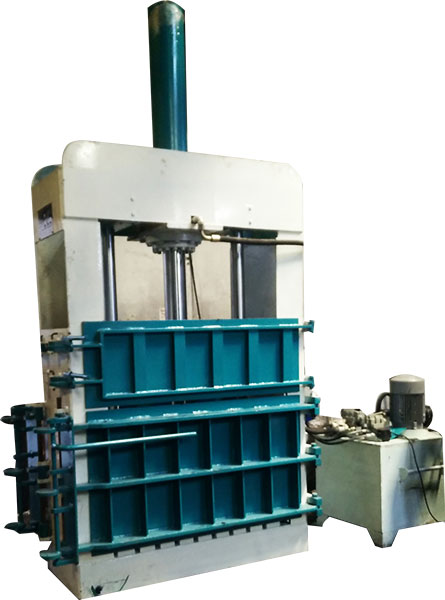

We are offering this type of cotton waste baling press machine in 45-75-100-150 ton capacity, which is specifically designed for 50 kg to 250kg bale. These machines are provided with mechanical bale ejector as option that helps in easy bale ejection. We also provide hydraulic door locking system for easy operation.
Capacity: 45-75-100-150-200 Ton
Bale Weight: 50 Kg to 250 Kg
Applications: Cotton Waste, Cotton Yarn, Yarn Waste, Wool, Woolen Yarn, Synthetic Yarn, Synthetic Fibre, Jute etc.
Pet Bottles Machine
We offer pet bottles baling machine mostly in two ranges 50-60 bale and 100-130 kg bale. Capacity of the pet bottle baling press is 25 ton and 50 ton. Our many customers use this machine to press the pet bottles and make very good profit on that.
Capacity: 25 Ton & 50 Ton
Bale Weight: 50 Kg to 130 Kg
We also make customized baling press for 150 kg to 200 kg bale.
Applications: Pet Bottles, Water Bottles, Plastic Waste etc
Specifications:
• Crompton Greaves / Siemens make motor
• Yuken make valves
• Yuken/ Denison make pump
• Heavy Duty Structure
Optional
• Hydraulic Bale Ejecting System
• Hydraulic Door Locking System
With a humble starting in 1975 with few workers, we mainly cater to the needs of Textile Finishing and processing industry by giving the quality machines.
